Specification

---

Management & Electrical:

Type RA 7K ECU with ESL Daughter Board (MAP based)
Version 5 MAP Sensor - 1.7bar
Custom Engine Wiring Harness + Car Loom (Raychem Type 44 & DR25)
20A Fuse & Relay (Bosch 044)
Battery Relocated to under the passenger seat
3 Port Boost Solenoid

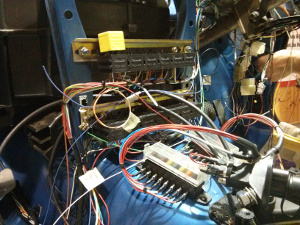

All Relays + Fuses relocated to centre console

---------------------------------------------

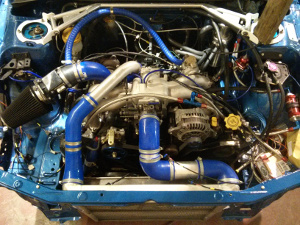

Engine:

Version 3 STI heads, ported with Inconel Exhaust Vales
VF43 Turbo, Rotated on custom Up / Down Pipes & GT Spec Headers
GT Spec Headers & 3 inch Revolution Exhaust System
Phase 1 Inlet Manifold Modfied to Front Entry
Carl Davey Inlet Manifold Insulating Spacers
Flipped Alternator & Custom Pulley / Tensioner

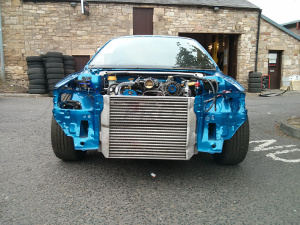

RS500 Intercooler & Radiator (modified to fit)
Dump Valve Removed
Newage Remote Power Steering Reservoir
RCM Catch Can with Return to Sump & Custom Oil Breather Pipework
K&N Large Cone Air Filter
Lateral Performance Anodised Lightweight Pulleys
Samco Hoses & Vacuum Hoses
Custom Throttle Cable Bracket

---------------------------------------------

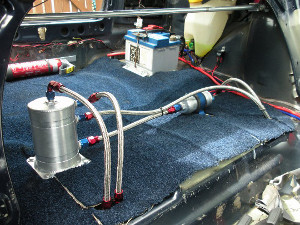

Fuel Setup (Boot):

Walbro 255lph In Tank Fuel Pump
Modified Lifter Pump Plate for -6AN Fiitngs
Bosch 044 External Fuel Pump
SM Engineering Swirl Pot (1.5Ltr)
Teflon Lined -6AN & -8AN Hose and Connectors
Billet Alloy Fuel Pump Mounting Bracket
RCM Fuel Line Adaptors (8mm to -6AN)

Fuel Setup (Engine Bay):

FueLab 818 Fuel Filter (10 micron)
Parallel Fuel Rail Mod
-6AN Goodridge 200 hoses & Connectors
RCM Fuel Line Adaptors (8mm to -6AN)
550cc Injectors
Fuel Rails Modified for AN fittings (-6AN)
FueLab Fuel Pressure Regulator

---------------------------------------------

Transmission:

5 Speed DCCD Gearbox (4.444) - TY754VB1EA
STI Helical Front Diff
R180 AP Suretrac Rear Diff (4.444)
Powerflex Rear Diff Mounting & Gearbox Cradle Bushes
Powerflex / SuperPro Gearlinkage Bushes
2.25 Turn STi Steering Rack

---------------------------------------------

Brakes:

Brembo 4-Pot Front Callipers
AP 320mm Front discs
Mintex 1144 Pads
-3AN Goodridge Braided Brake Lines
2 Pot Brembo Rear Brakes
316mm Rear Discs
Tilton Bias Valve (Lever Type)

---------------------------------------------

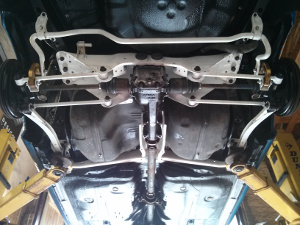

Chassis & Suspension:

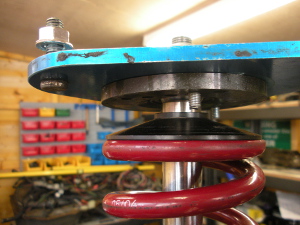

LEDA B Adjustable Coilovers
Eibach 225lb Springs
STi Front & Rear Strut Braces
Powerflex Bushes throughout car
Grp N Engine & Gearbox Mounts Whiteline Roll Centre Kit
Whiteline Anti-Lift Kit
Whiteline Solid Front & Rear Drop Links
Whiteline 22mm Fixed Front Anti-Roll Bar
Whiteline 24mm 3-Way Adjustable Rear Anti-Roll Bar
Whiteline Rear Sub frame Lock Kit
All Suspension Arms etc Powder Coated
All new Wheel Bearings

Geometry:

Front camber -ve 2 degrees
Front toe zero
Rear camber -ve 1.75 degrees
Rear toe 1.5mm toe in total

---------------------------------------------

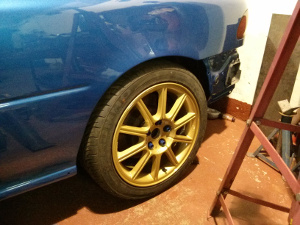

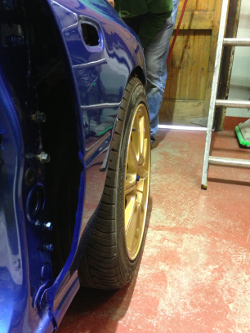

Wheels & Tires:

8x17 2007 STI Enkei Alloys
225/45R17 Kumho KU31

---------------------------------------------

Exterior:

Ducting for Cold Air Feed to Air Filter
Clear Indicators
Version 5 Facelift Front End
New Front Bumper Bar
STi Fog Light Covers
P1 Front Splitter
All new rubber seals and plastic trim

---------------------------------------------

Interior:

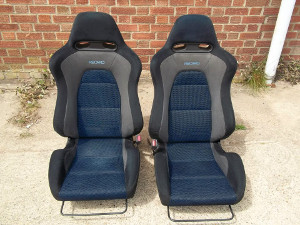

EVO 8 Recaro Front Seats
OMP Corsica Steering Wheel
Milsport Gauge Pod
Stack Pro Control Oil Pressure Gauge
Stack Pro Control Fuell Pressure Gauge
Stack Turbo Boost Pressure Gauge
Stack Oil Temperature Gauge
Stack Water Temperature Gauge

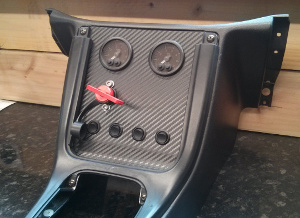

Carbon Centre Console
Manual Windows (Electric removed)
Carbon Door Cards & Rear Quarter Covers

---------------------------------------------

Weight Loss:

Interior Boot Trim and Space-Saver Spare Wheel Removed
All redundant wiring removed
Radio & all speakers removed
Sound Insulation Removed
Rear Wiper Arm & Motor Removed
Antenna for Radio Removed
