Specification
Engine:
462 bhp 435 lbft Harvey Gibbs engine - Full Engine Spec Later Pectel T6 ECU, 3 power settings, 350, 400, max. Custom SCS Loom Roller bearing Turbo (hybrid) with Maram shaft (for Anti lag) WRC Exhaust manifold Water Injection with WRC pump Harvey Gibbs Spec Cams & Head work Anti Lag System & Launch Control (launch control to be programmed) Pro Alloy 100mm core intercooler, Radiator Pro Alloy Custom Water Injection & Water Header Tanks Fuel Lab Fuel Pressure regulator ATL 30Ltr fuel tank & Collector Facet Low Pressure Lifter Pump Bosch 044 Fuel Pump ATL 15 micron filter Goodridge 600 hoses & Connectors (-6An Fuel / -10An Oil) Titanium Side exit exhaust with WRC Cat WRC Oil Breather System Carbon Fibre Air Box ---------------------------------------------Transmission:

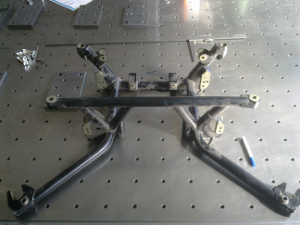

BARA 6sp RnD Dog box, 60Nm VC Gripper 6.5" Front diff, Quaife heavy duty housing 7.5" Plated rear diff, Gripper 45/90 (4.444:1) Titan Motorsport Custom Steering Rack, sp 1.8 Aluminium Adjustable Track Control Arms Modified Front X Member WRC Rear Cradle Lightened & Balanced Driveshaft's Sachs motorsport 140mm 3 plate clutch Sachs HRB TTV lightened Flywheel, approx 3.5Kg WRC Uprights with heavy duty bearing CAE-Racing Gear Change ---------------------------------------------Suspension:
KW 3way Coilovers Eibach Springs Eibach Helper Springs All Rose Jointed WRC Top Mounts ---------------------------------------------Brakes:

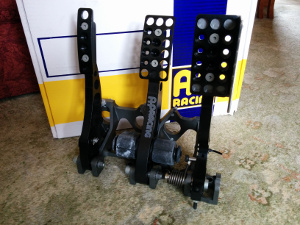

AP 356mm front brakes, CP5040 4 pot calipers AP 295mm rear brakes, CP5040 4 pot calipers AP Racing Brake Proportional Valve Goodridge brakelines, Stainless Steel fittings AP 5500 Pedal box, AP master cylinders AP 600 brake fluid BG Developments custom Brake Bells ---------------------------------------------Wheels:
10J x 18 ET20 White BBS Magnesium Race Wheels Avon Slicks, 275/640 R18 9J x 17 ET23 Black Team Dynamics Pro Race 1.2 Dunlop 235/610R17 BTCC Wet Tryes ---------------------------------------------Exterior:

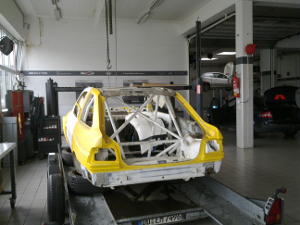

Gp A shell with WRC mounts Carbon / Kevlar Panels. -> Front Doors -> Boot Lid -> Bonnet -> Front Bumper -> Rear Bumper -> WRC Fibre Glass Front Wings Glass Front Windscreen (regulations) Side & Rear Windows Macrolon Weight 925Kg (without driver) Single Wiper Headlight surrounds from Dewitts ---------------------------------------------Interior:

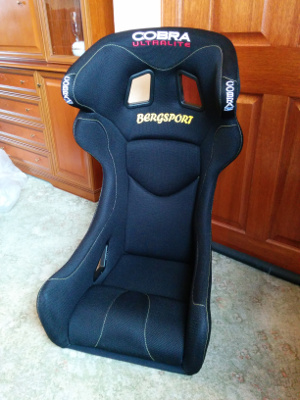

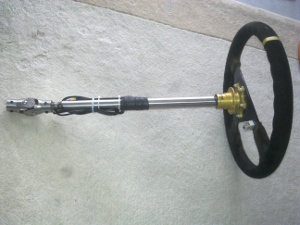

Single Cobra ‘Ultralight’ Race Seat OMP Steering Wheel LifeLine Quick Release (Steering Wheel) Custom Electric Power Steering + KA Sensors Torque Sensor Titan Motorsport custom steering drive Stack 8100 Dash Display System Racetech Boost Gauge Longacre Ignition Switch Custom Dashboard, 2.5Kg DMS Racing Battery ---------------------------------------------Safety:
Schroth 6 point Race Harness G Vincent WRC Welded-in Rollcage Bell Sport 4 Helmet Schroth Racing HANS System LifeLine Fire Extinguisher Main battery cut out E-T-A Circuit Breakers
